Customized tri axle 80 ton heavy low bed semi trailer , 100 T goose neck low bed trailer
Description:
1 Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
2. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.
3. We can be design the special model according to your requirement.
Applications:
Apply to transport longer larger parts, miscellaneous pieces of cargo, large components and equipment.
Competitive Advantage:
1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
3. Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
4. Advanced means of production technology and perfect testing equipment to protect the product overall structure is reasonable, reliable performance.
Specification
| Weight |
| Tare Weight | 8000kg |
| Loading Capacity | Low bed semi trailer |
| Axle Weight Load | 3 axles, 13T FUWA / BPW Brand |
| Specification |
| Axle number | 3 |
| Suspension | Common mechanical |
| King Pin | 2" or 3.5" traction pin |
| Dimensions (LxWxH) | 13000 × 3000× 1700mm or others |
| Support legs | 28T |
| Wheel Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice |
| Wheelbase | 7180+1310+1310mm |
| Steel Spring | 8/10/13 pieces per axle |
| Ladder | Mechanical ladder Or Air Ladder |
| Landing Gear | Manual operating, Heavy duty landing gear (Brand Optional upon chioce) |
| Floor | 3 - 5 Diamond plate |
| Accessories | 2 Sets standard tool box |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| Painting | 1coat of anticorrosive prime, twice coats of final paint |
| Tire: |
| Tire spe. | 12R22.5 |
| Number of Tire | 12 pieces |
| Spare Tire Carriers | 2 pieces |
| Frame |
| Main beam | The height of the beam is500-550mm; Upper plate:18mm;Down plate is 20mm; Middle plate is 12mm. |
| Cross beam | 14#Channel steel |
| Side beam | 25 # channel or H steel |
| Brake |
| Brake brand | Optional upon choice |
| Brake Chamber | Six big chamber( Brand Optional upon chioce ) |
| Brake system | Dual Line Brake system (ABS Optional upon chioce) |

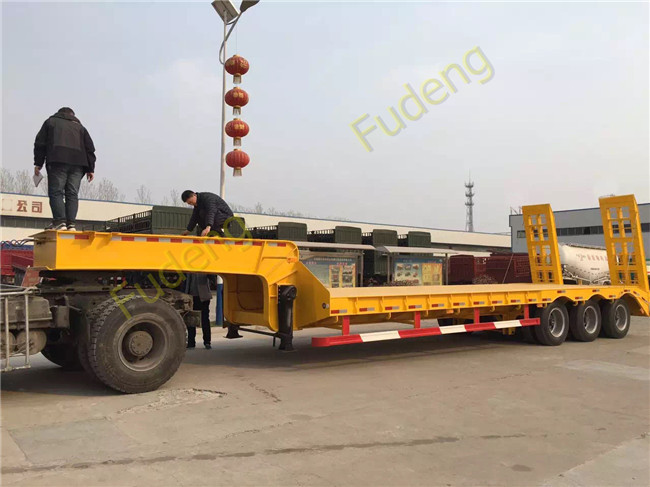

3 axle low bed semi trailer
FAQ
Q : How about your product quality?
A : All our products are from the original manufacturers and the quality is 100% guaranteed.
Q : How do you transport the low bed trailers?
A : There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container to meet your requirements.
Q : Can I be your agent in my country ?
A : It’s OK if the order quantity is appropriate. We looks forward to long-term
cooperation.
Advanced production equipment, modern testing equipment.
First-class technical team and senior management personnel.
Provide the most suitable for industry application of goods.
Besides lowbed trailers. we also specialized in various, tractors, trucks, construction equipment as well as spare parts
Welcome to inquiry!
